Vehicle - TNT 300

PASSION COMES STANDARD

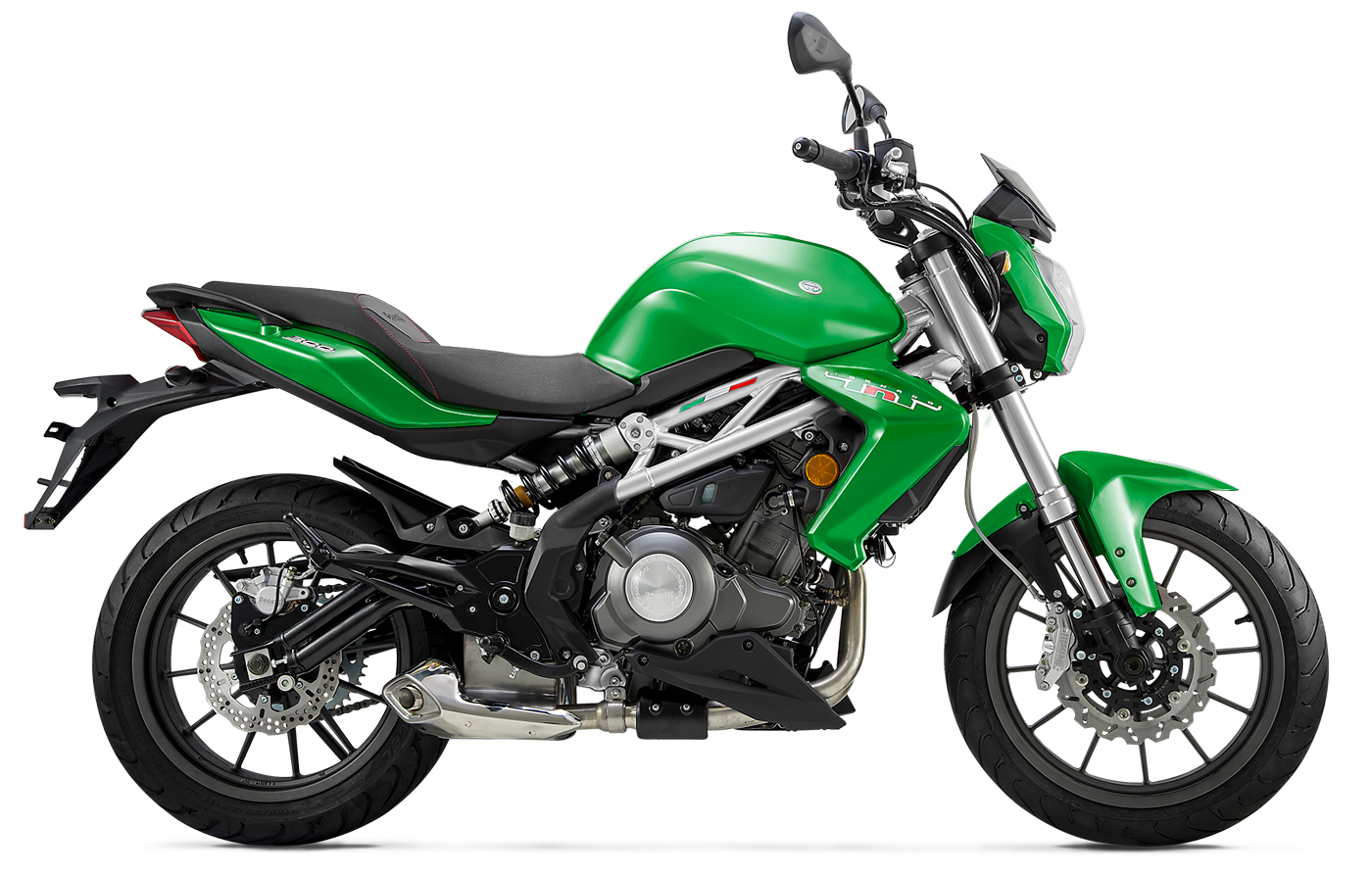

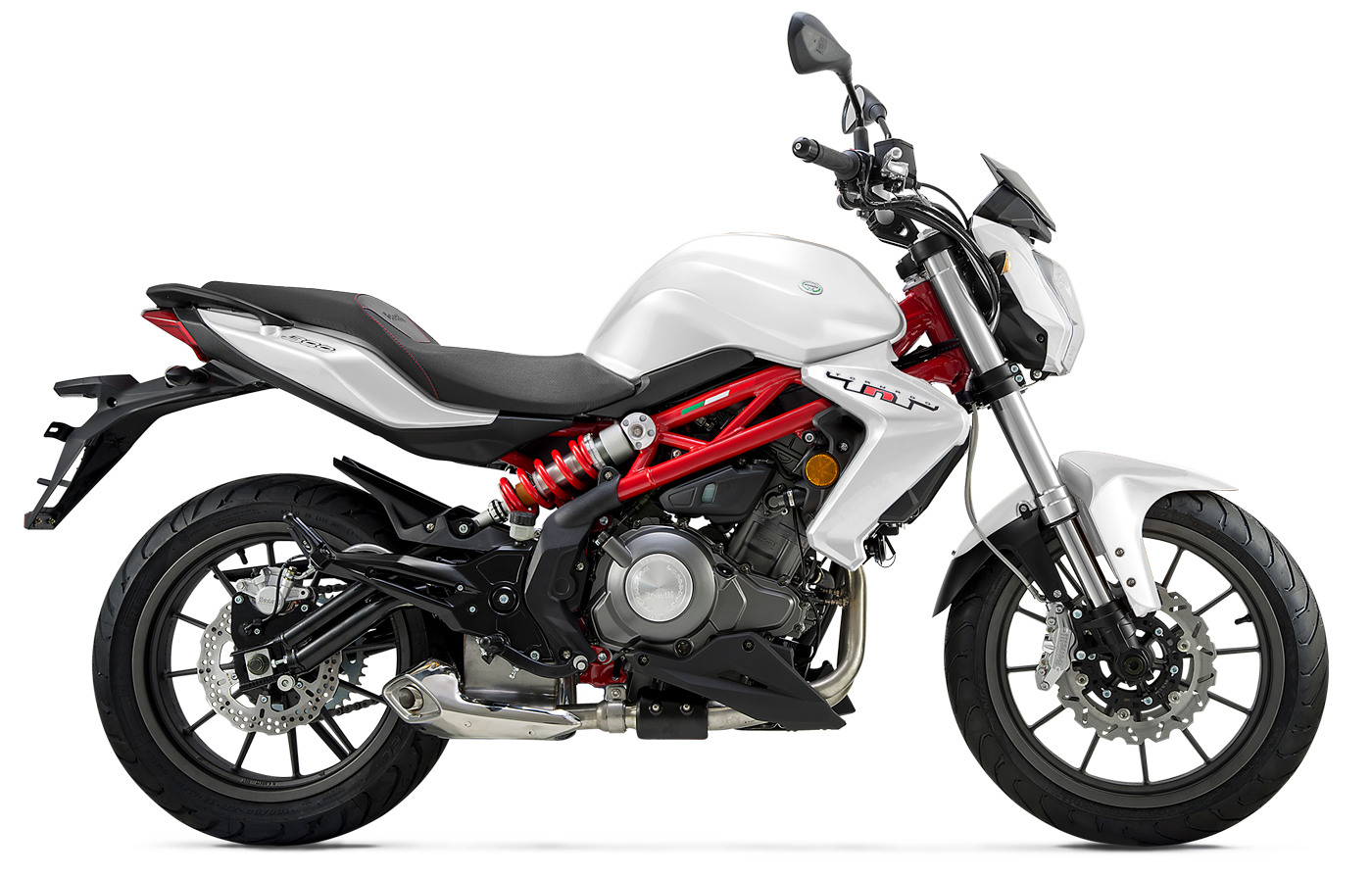

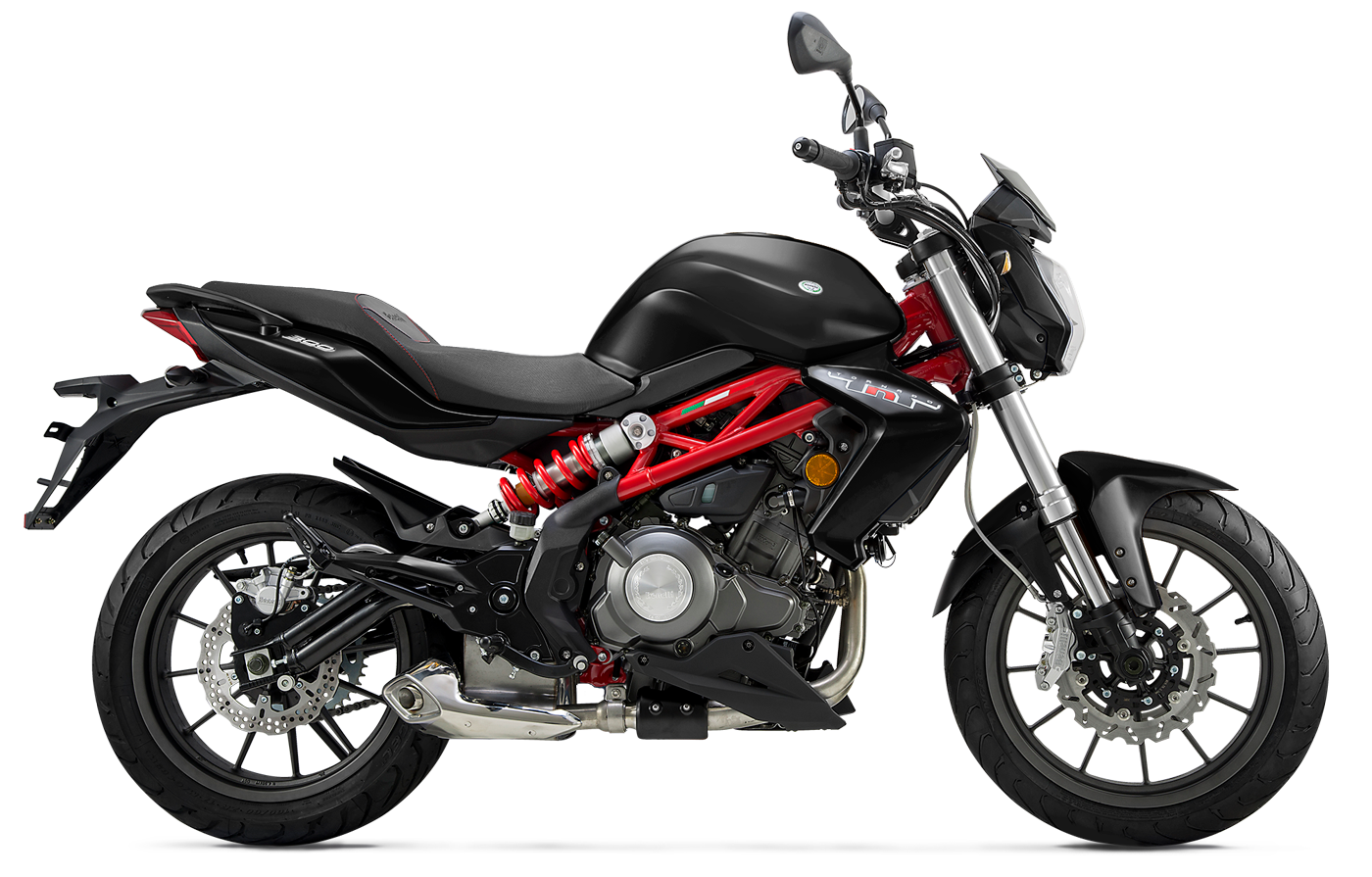

Here’s the TNT 300, showcasing a fuel-injected 300 cc parallel twin engine that is liquid cooled and comprises of a six-speed gearbox. This naked racer comes loaded with features like trellis frame, horizontal off-set monoshock, inverted front forks and petal discs up front and rear, which provide better heat dispense under hard braking. But what you would really crave for the most is the ballistic sound created by the engine, as the TNT 300 is built for those who urge for riding experience in its purest form… Because Passion Comes Standard!

DISPLACEMENT: 300 CC

RATED OUTPUT: 38.26 BHP @ 11500 RPM

USABLE TANK VOLUME: 16 LTS

• ENGINE
• CHASSIS
• DIMENSIONS

•

  ENGINE



  • TYPE In-line, 2 cylinder, 4-stroke, liquid cooled, 8 valves, DOHC
  • DISPLACEMENT 300 cc
  • BORE x STROKE 65 x 45.2 mm
  • COMPRESSION RATIO 12:1
  • RATED OUTPUT 38.26 BHP @ 11500 RPM

  • MAX. TORQUE 26.5 Nm @ 10000 RPM
  • LUBRICATION N/A
  • FUEL SUPPLY EFI
  • EXHAUST SYSTEM With two catalytic converter and two oxygen sensor
  • CERTIFICATION BS IV

  • CLUTCH Wet multi-plate type
  • GEARBOX 6-speed
  • FINAL DRIVE Chain drive
  • Ignition N/A
  • Spark plug N/A

  • Starting Electric
  • GEAR RATIO N/A
  • PRIMARY DRIVE N/A
  • FUEL CONSUMPTION N/A
  • CO2 EMISSIONS N/A
•

  CHASSIS



  • FRAME Steel trestle
  • FRONT SUSPENSION Inverted telescopic forks
  • FRONT SUSPENSION STROKE N/A
  • REAR SUSPENSION Off-Set rear monoshock

  • REAR SHOCK ABSORBER STROKE N/A
  • FRONT BRAKE 7700 sq. mm. Hydraulic Dual Discs and ABS
  • FRONT RIM TYPE Alluminium alloy

  • FRONT RIM DIMENSIONS E 17"xMT3.5 DOT-D
  • REAR BRAKE 3278 sq. mm. Hydraulic Single Disc and ABS
  • REAR RIM TYPE Alluminium alloy

  • REAR RIM DIMENSIONS E 17"xMT4.5 DOT-D
  • FRONT TYRE 120/70 - 17
  • REAR TYRE 160/60 - 17
•

  DIMENSIONS





  LENGTH
  2130 mm

  HEIGHT EXCLUDING MIRRORS
  1120 mm

  PILOT SEAT HEIGHT
  795 mm

  • WIDTH EXCLUDING MIRRORS 800 mm
  • GROUND CLEARANCE 160 mm
  • UNLADEN WEIGHT N/A
  • ROAD READY WEIGHT 196 kgs

  • PERMITTED TOTAL WEIGHT 395 kgs
  • USABLE TANK VOLUME 16 lts
  • RESERVE 3 lts
  • WHEELBASE 1410 mm
